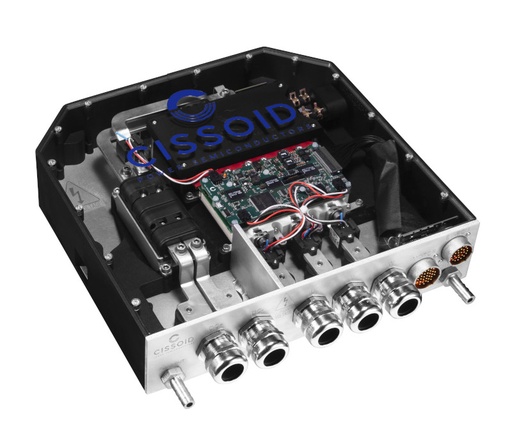

The SiC Inverter Reference Design is based on CISSOIDs unique hardware and software platform, setting new levels in terms of power density and efficiency, enabling the rapid development of Silicon Carbide (SiC) based inverters for electric drive trains. The reference design offers a modular electrical and mechanical integration of a 3-phase 1200V/550A SiC MOSFET Intelligent Power Module from CISSOID, combined with the motor control board and customizable Inverter Control Software. The complete reference design includes a DC-Link capacitor, DC and phase current sensors, an EMI filter and liquid cooling.
Learn more about the platform

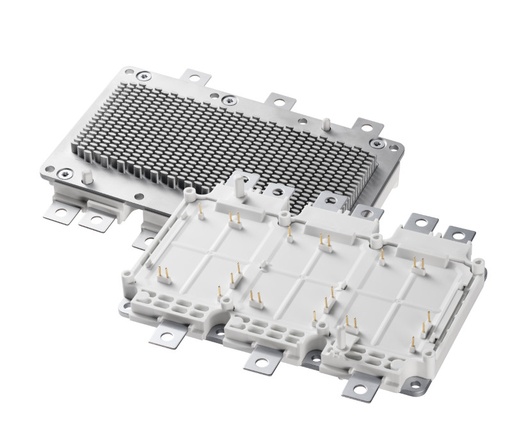

The CXT-PLA3BG07820RA is a 750V/820A 3-Phase IGBT Power Module based on the latest generation Trench Gate Field Stop (TG-FS) technology, made and qualified for the most stringent automotive applications. The product offers fast switching, short tail currents and easy paralleling. It also features free wheeling diodes with fast and soft reverse recovery. The dense and ellipsoid pinfin grid of the innovative baseplate brings improved thermal performance and reduced flow resistance, significantly boosting the cooling capacity of the baseplate. The power module is AQG-324 automotive qualified and guaranteed to operate over the full -40°C to +175°C (Tj) temperature range.

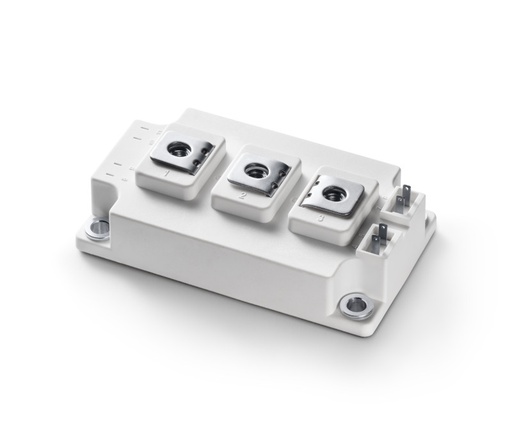

The CMT-PLA1BK12300MA is a 1200V/300A half-bridge IGBT Power Module utilizing advanced Trench Gate Field Stop (TG-FS) technology. Designed and qualified for demanding industrial applications, it features low saturation voltage and delivers a continuous DC collector current up to 450A. It also features fast switching and short tail currents, as well as a free-wheeling diode optimized for fast and soft reverse recovery. The module is guaranteed for reliable operation across the full junction temperature range from -40 to +175°C (Tj).

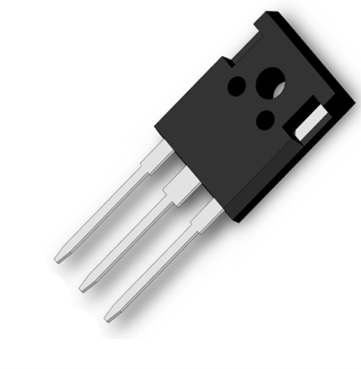

The CMT-PLA0BN06075LA is a 650V/75A IGBT with low switching losses in Trench Gate Field Stop (TG-FS) technology. The product offers fast switching, high pulsed current capability and short tail currents. It also features a free wheeling diode with fast and soft reverse recovery. It is available in a TO-247-3L package, and is guaranteed for reliable operation over the full temperature range from -40°C to +175°C (Tj).
The CMT-PLA0BN06075MA is a 650V/75A IGBT in Trench Gate Field Stop (TGFS) technology, featuring low saturation voltage and hence low conduction losses. The product offers fast switching and short tail currents. It also features a free wheeling di-ode with fast and soft reverse recovery. It is available in a TO-247-3L package, and guaranteed for reliable operation over the full temperature range from -40 to +175°C (Tj).

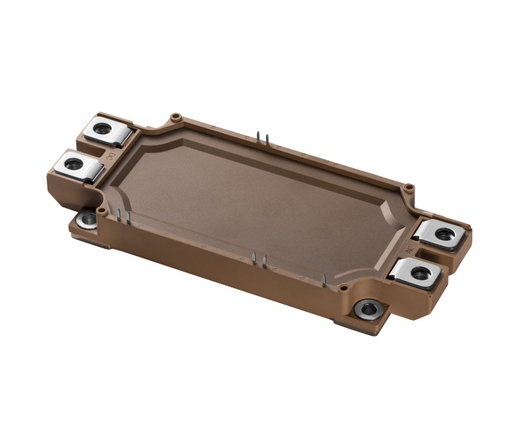

The CMT-PLA1BL12300MA is a 1200V/300A half-bridge IGBT Power Module based on Trench Gate Field Stop (TG-FS) technology. Designed and qualified for demanding industrial applications, it features low saturation voltage and delivers a continuous DC collector current up to 450A. It also features fast switching and short tail currents, as well as a freewheeling diode optimized for fast and soft reverse recovery. The module is guaranteed for reliable operation across the full junction temperature range from -40°C to +175°C (Tj).
Power your traction and auxiliary motor drives with the Pulse Mini S95 SiC inverter.

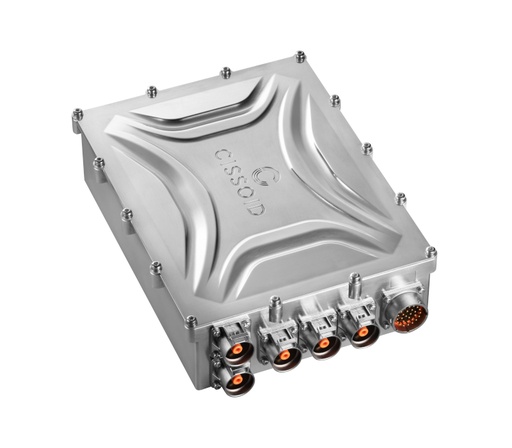

Operating across 50–850 V DC, it delivers over 99% peak efficiency and 95~97% partial-load efficiency. Electrically and functionally safe, the Pulse Mini S95 SiC inverter combines advanced e-motor control software with extensive configurability and easy calibration to adapt to your application.
COMPACT & EFFICIENTPowered by SiC technology, advanced e-motor control, and liquid cooling, for high performance in a compact footprint.
MODULARDesigned with an open architecture, scalable power modules, and configurable software for flexible system integration.
SAFEISO 26262-certified building blocks unite functionally and electrically safe hardware, with functionally safe software, enabling safety from the ground up.

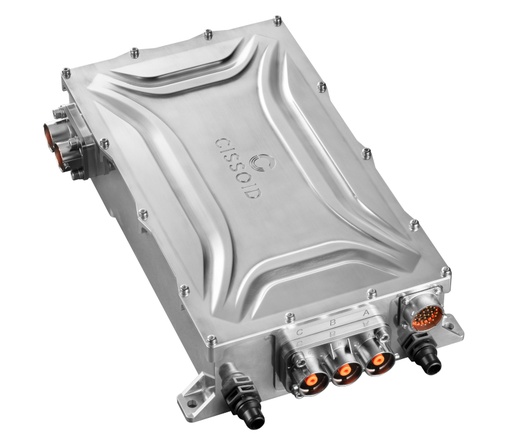

Power your traction and auxiliary motor drives with the Pulse Compact S250 SiC inverter.Operating across 50–850 V DC, it delivers over 99% peak efficiency and 95~97% partial-load efficiency. Electrically and functionally safe, the Pulse Compact S250 SiC inverter combines advanced e-motor control software with extensive configurability and easy calibration to adapt to your application.

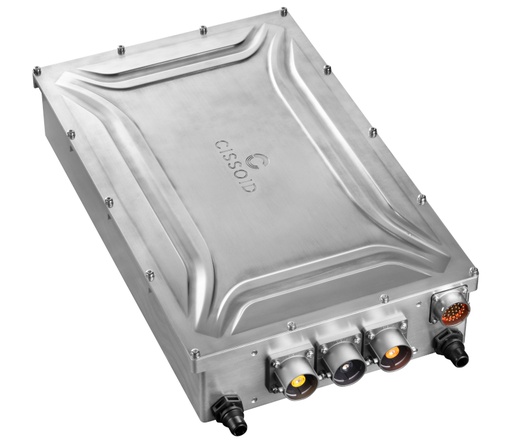

Power your traction and auxiliary motor drives with the Pulse Ultra S400 SiC inverter.Operating across 50–850 V DC, it delivers over 99% peak efficiency and 95~97% partial-load efficiency. Electrically and functionally safe, the Pulse Ultra S400 SiC inverter combines advanced e-motor control software with extensive configurability and easy calibration to adapt to your application.
