New Products

CISSOID, the leader in high temperature semiconductors for the most demanding markets, recently introduced new High Temperature Automotive IC's, Gate Drivers, SiC MOSFET's and IGBT Power Modules for power electronics and intelligent motion in automotive, renewable energy, and energy management.

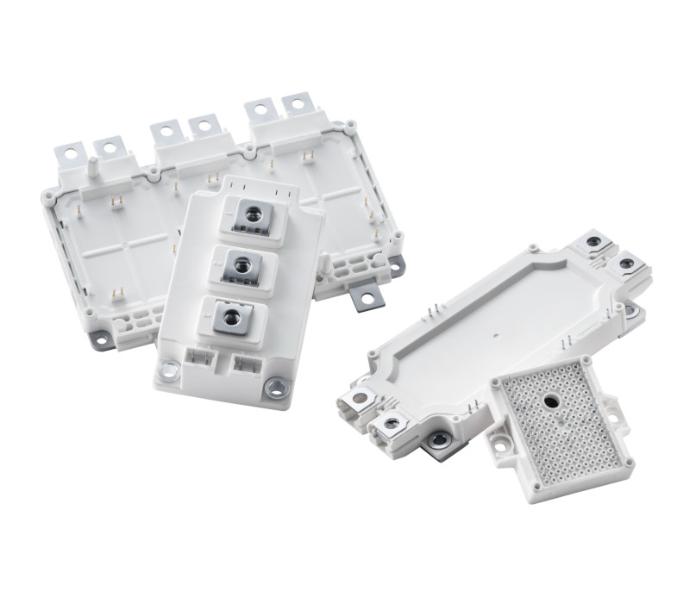

SiC MOSFET Intelligent Power Modules

This new platform of SiC MOSFETs Intelligent Power Modules is designed for automotive and industrial electrical motor drives. It enables high power density converters giving access to the full benefits of SiC technology thanks to operation at high junction temperature (up to 175°C) and low switching losses. The first product out of this new platform is the:

CXT-PLA3SA12450: A 3-Phase 1200V/450A SiC MOSFET Intelligent Power Module.

Download technical article on SiC Intelligent Power Modules in Bodo's Power Systems (May 2020 - English), (June 2020 - Chinese).


SiC MOSFET Gate Drivers

Gate Driver boards for SiC MOSFET Power Modules rated at 125°C (Ta) offer thermal headroom for the design of high density power converters in automotive and industrial applications enabling high frequency (>100KHz) and fast switching (dV/dt>50KV/µs), improving efficiency and reducing size and weight.

CMT-TIT8243 and CMT-TIT0697 are respectively optimized for 62mm and XM3 SiC Power modules.

Download technical article on SiC Gate Driver Boards in Bodo's Power Systems (Sept 2019).


CMT-PLA9869High Temperature High Voltage  Silicon Carbide (SiC) MOSFET transistor, available in standard TO-247 package and guaranteed from -55°C to +175°C (Tj). The device has a breakdown voltage in excess of 1200V and can switch currents up to 60A.

Automotive ICs

CISSOID has introduced CXT family of components designed and qualified for high-temperature automotive environments with operating junction temperature from -55°C up to +175°C (Tj):

CXT-STA4919: A 50mA adjustable linear voltage regulator suitable to generate from a +4.5V to +35V voltage source any regulated voltage in the range +3.3V to +28V.

CXT-741xx are 4 configurable devices enabling 13 logic functions: INV, BUFFER, AND, AND w/ inverted input, NAND, NAND w/ inverted input, OR, NOR, NOR w/ inverted input, XOR, NXOR, MUX and D Flip-Flop.
