CXT-ICM3SA12450A

3-Phase 1200V/450A SiC Inverter Control Module with AlSIC PinFin Heatsink

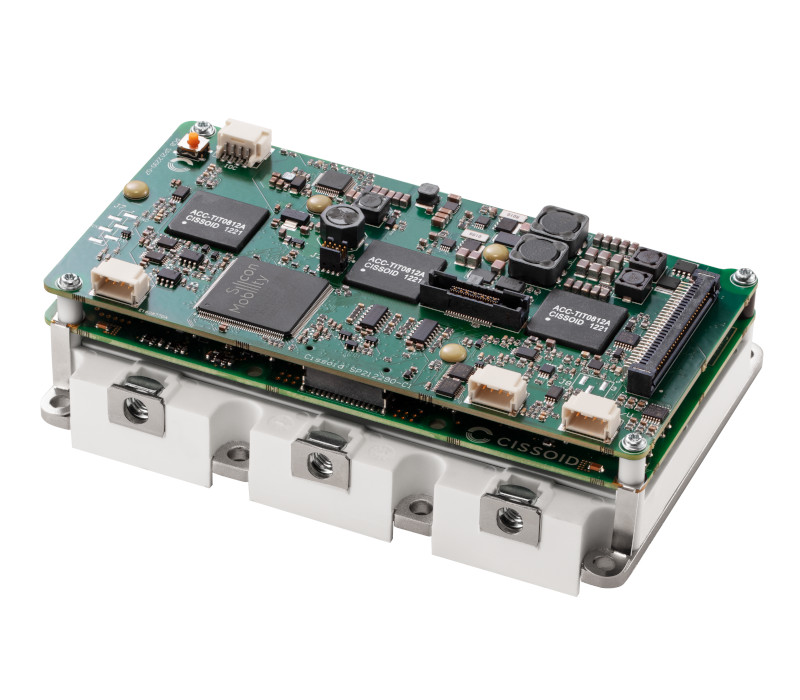

Product Image


The  3-Phase 1200V/450A SiC Inverter Control Module (ICM) offers optimal mechanical and electrical integration of the 3-Phase 1200V/450A SiC MOSFET Intelligent Power Module (IPM) from CISSOID with the Adaptive Control Unit T222 based SiC Inverter Control Board and Adaptive Control APP - T222 INVERTER application software from Silicon Mobility. This unique integration of a compact low losses SiC IPM with an ultra-fast, low power consumption, and critically safe real-time controller is setting new levels in terms of power density and efficiency. Integrated hardware and the application software support rapid development of SiC inverters for compact and efficient motor drives in E-Mobility applications. The platform is supplied with highly configurable control application software supporting various types of electric motors and position sensors.


General features

  • 3-phases 1200V/450A SiC Power Module
  • Integrated gate driver board
  • Ultra-fast Adaptive Control Unit T222 control board
  • Supports Adaptive Control APP - T222 INVERTER software
  • Adaptive Control Unit T222 processor & software are ISO26262 ASIL-D and AUTOSAR 4.3 certified
  • Inverter Control Module: ISO-26262 ASIL-C Ready

Key elements

SiC Inverter Control Board & Software

      • Adaptive Control Unit T222 controller chip
      • ISO-26262 ASIL-D Certified ACU T222 & Software
      • Advanced control algorithms for high energy-efficiency
      • Closed-loop control based on Field Oriented Control and variable SVPWM up to 50 kHz with short dead time compensation
      • Advanced modulations (SVPWN, DPWM)
      • Reduced Total Harmonic Distortion
      • Reduced HVDC Link Voltage Ripple

SiC Intelligent Power Module (IPM)

      • Low ON-resistance
      • Low switching energies
      • Max operating temperature: 175°C (TJ)
      • Lightweight AlSiC Pin Fin baseplate for liquid cooling
      • Gate Driver Protections:
        • Under Voltage Lockout (UVLO)
        • Desaturation Protection
        • Soft Shutdown turn-off (SSD)
        • Negative gate drive (-3V)
        • Active Miller Clamping (AMC)
        • Gate-Source Short-circuit Protection



Applications

  • Electrical Vehicle (EV) Motor Drives
  • Heavy Duty Motor Drives & Active Rectifiers
  • Industrial Motor Drives
  • Power Conversion

Ordering information

Ordering reference Description Status Link
CXT-ICM3SA12450AA

3-Phase 1200V/450A SiC Inverter Control Module -  AlSiC PinFin Heatsink

(Version A - Legacy version)

 Not for new designs Contact us
CXT-ICM3SA12450AB

3-Phase 1200V/450A SiC Inverter Control Module -  AlSiC PinFin Heatsink (Version B)

 Active Buy Here

Documents

Type Title Link
Download CXT-ICM3SA12XXXABA - PinFin ICM 3D STEPmodel ZIP
White Paper Dead Time Compensation Scheme IEEE COMPEL Paper 2024-04-18 PDF
Datasheet SiC Inverter Control Module Hardware User Manual (Version B) PDF
Product Brief CISSOID SiC Inverter Control Module Product Brief PDF
Application note CXT-PLA3SA Mounting and Cooling Recommendations Application Note PDF
