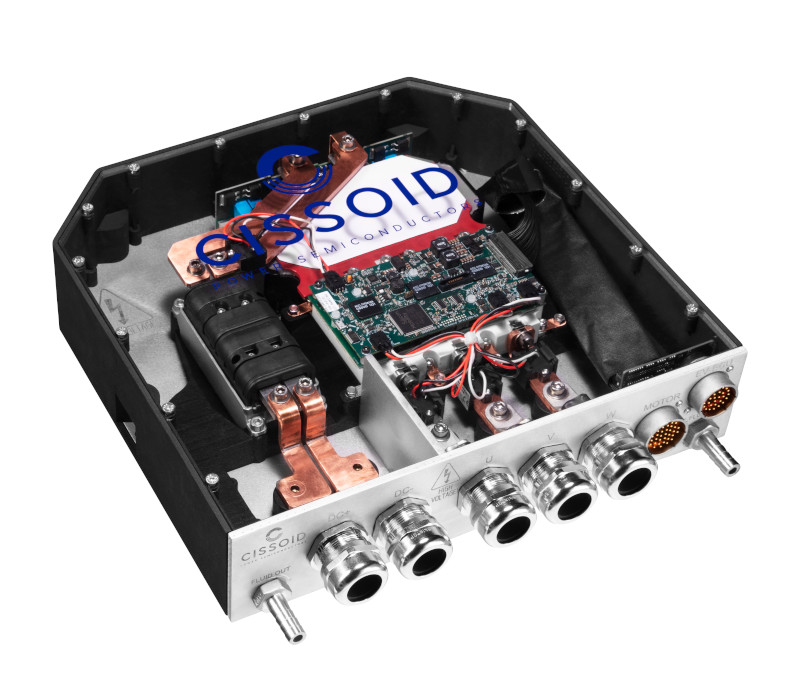

The SiC Inverter Reference Design is based on CISSOIDs unique hardware and software platform, setting new levels in terms of power density and efficiency, enabling the rapid development of Silicon Carbide (SiC) based inverters for electric drive trains.

The reference design offers a modular electrical and mechanical integration of a 3-phase 1200V/550A SiC MOSFET Intelligent Power Module from CISSOID, combined with the OLEA® T222 FPCU based control board and OLEA® APP INVERTER application software from Silicon Mobility.

The complete reference design includes a DC-Link capacitor, DC and phase current sensors, an EMI filter and liquid cooling.

Learn more about the platform
